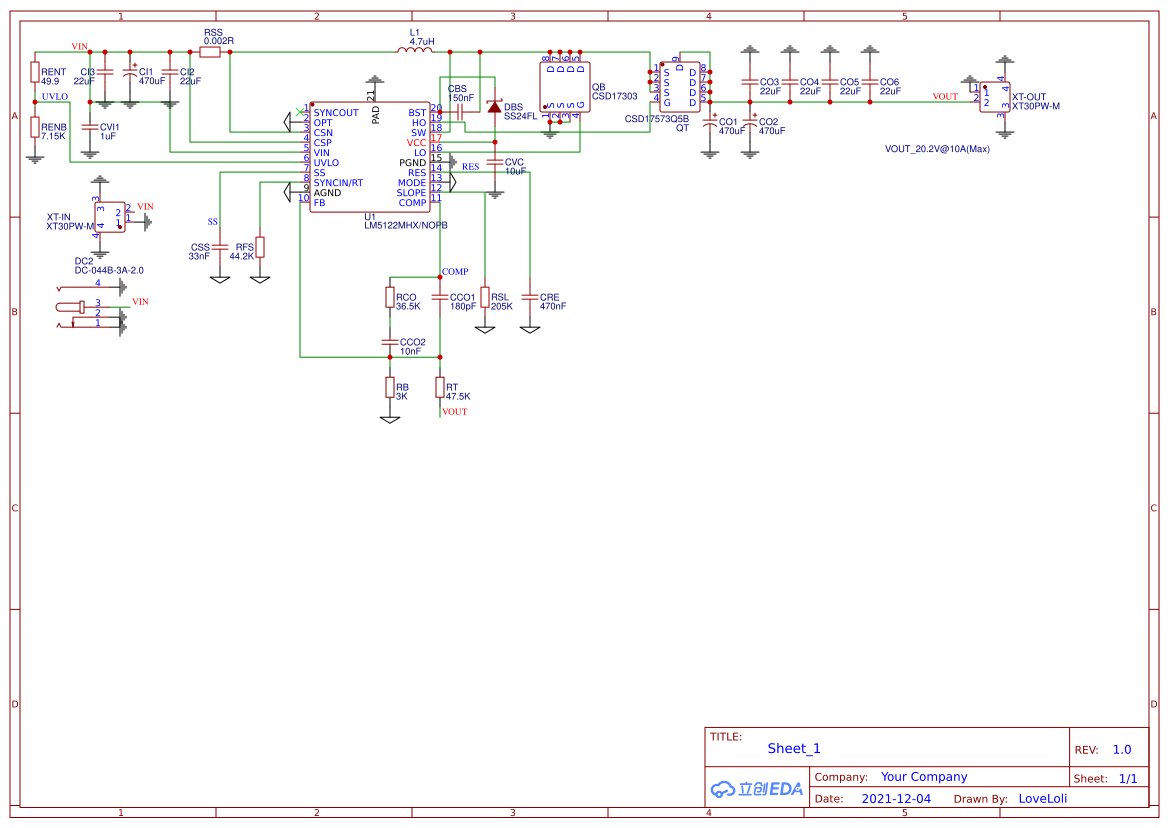

200W 20V Boost Module in LM5122 environment
2026-09-23 18:00:00 | pcba-mkr
--Input Side:
Voltage: 11 - 19V

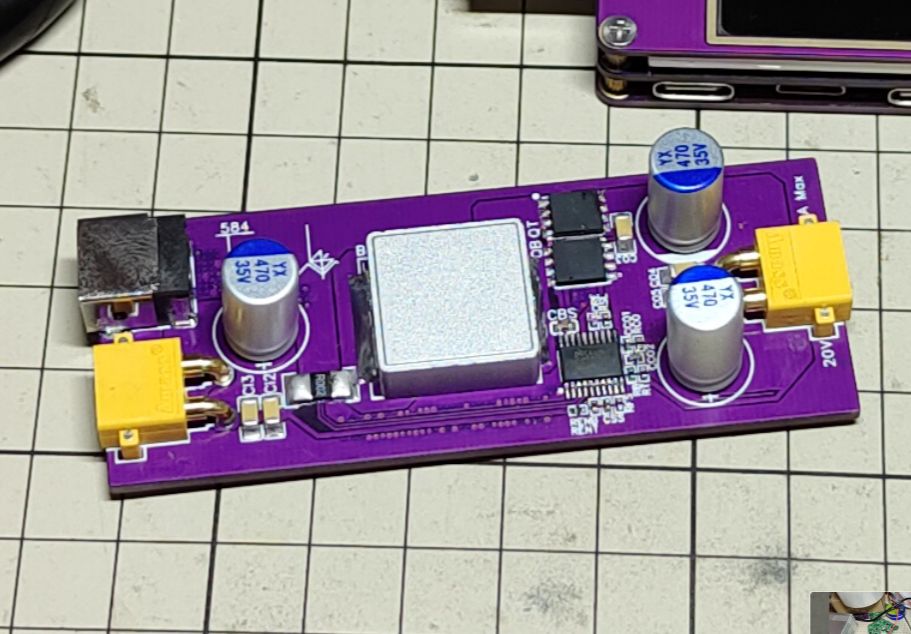

Equipped with XT-30 + DC_044 input slots
Output:
Voltage: 20.2V
Output current capacity: Maximum 10A
Current limiting is located on the input side. Generally, the input current should not exceed 15A.
Design efficiency: 96%
The inductor can be flexibly replaced according to your actual scenario. It is recommended to adjust it within the range of 3.3 - 10uh.
